Introducing The Odin

There are 3 sizes:

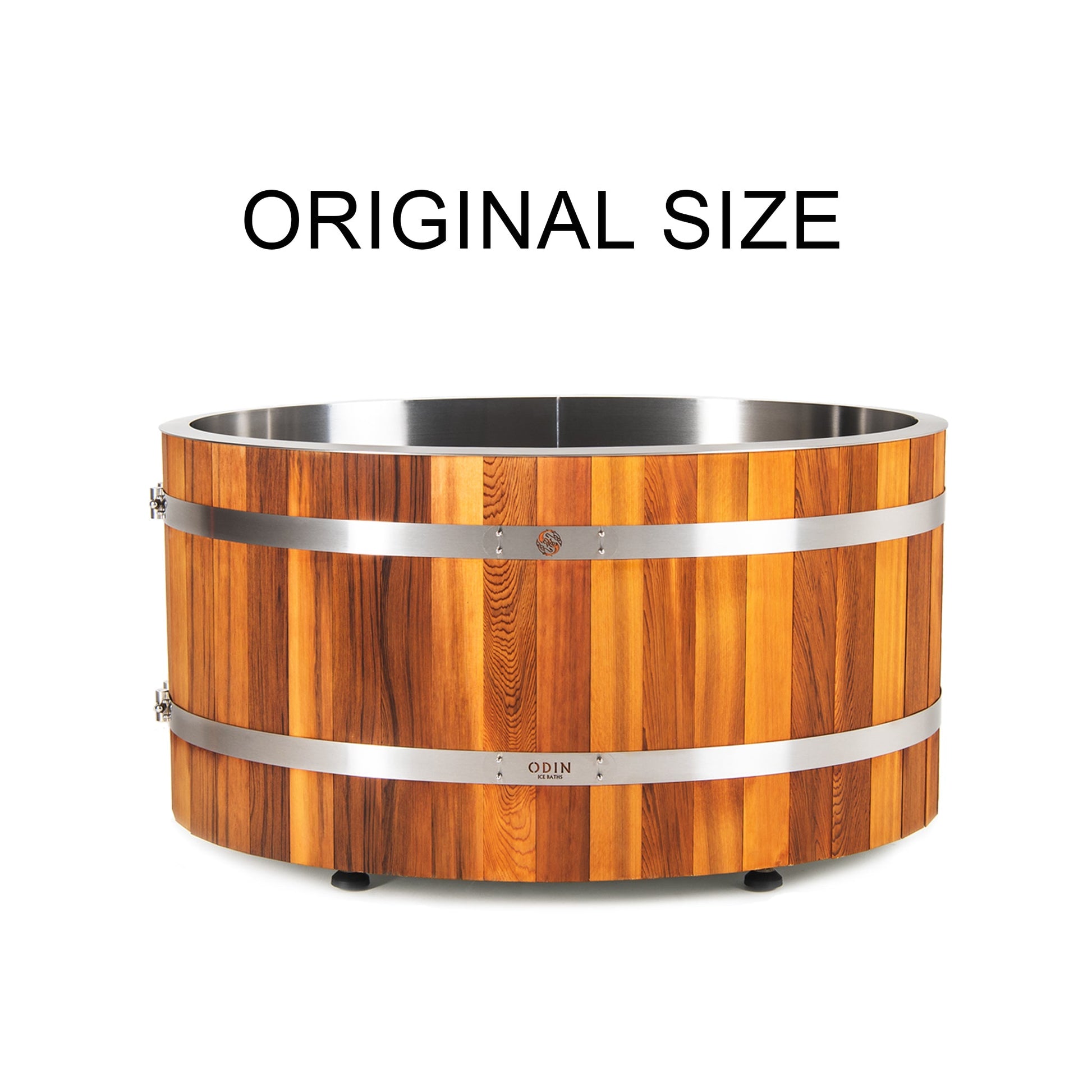

- The Odin Original

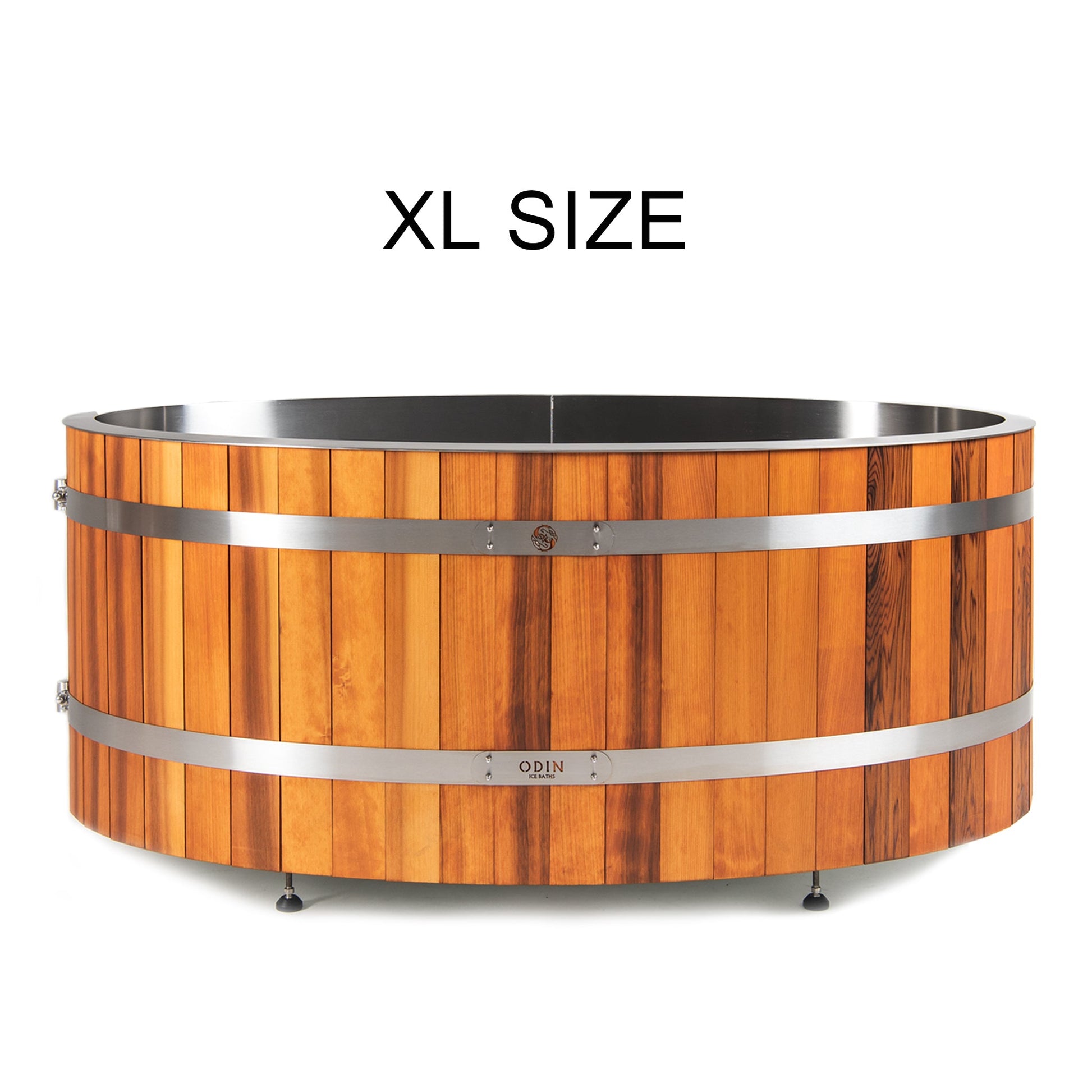

- The Odin XL
- The Odin Dual

Each of these sizes comes in a Lite version and a Pro version.

The Original models are comfortable for most users measuring up to approximately 6'2" (187cm).

The XL models are recommended for users over 6'2" or for those who want a bit of extra legroom.

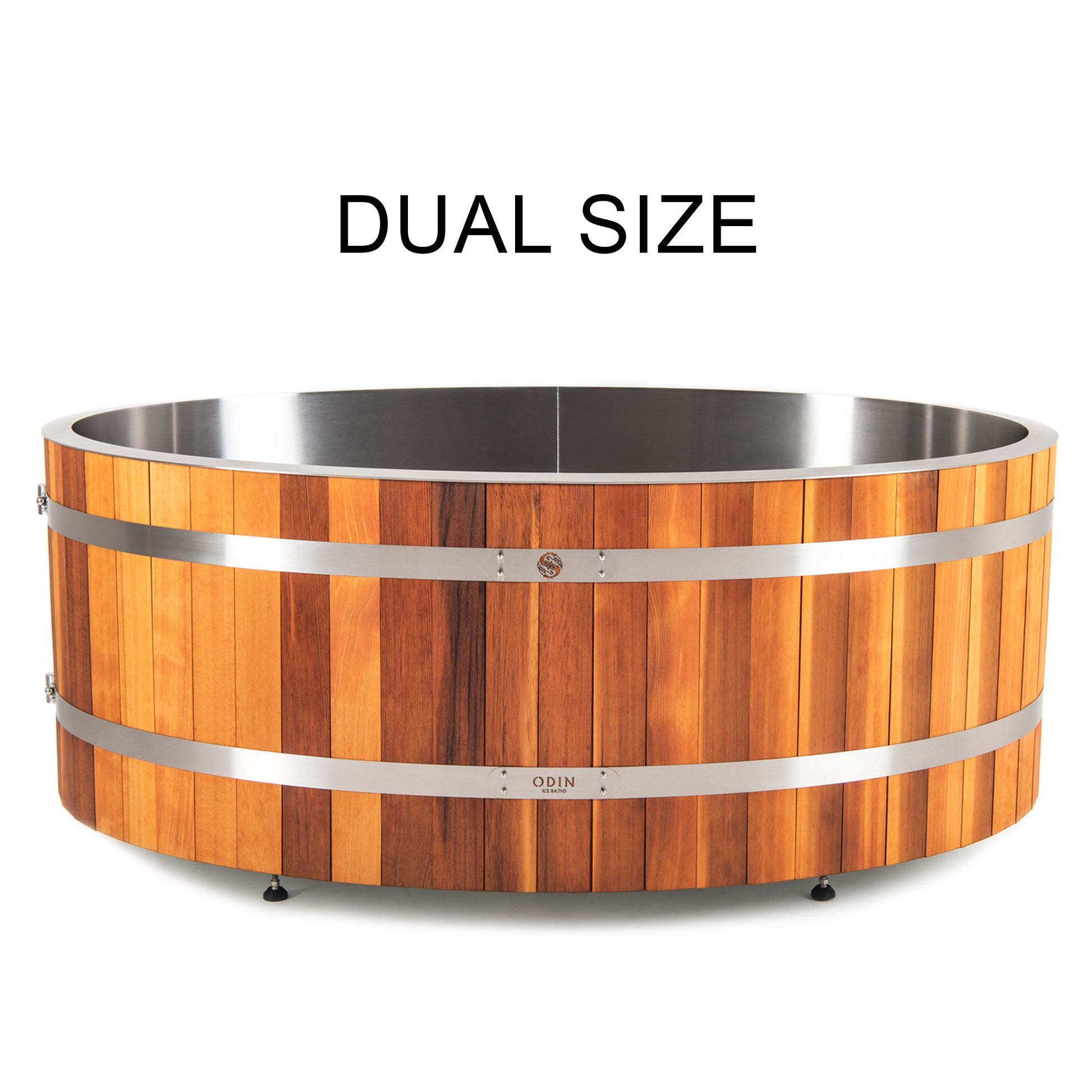

The Dual models can comfortably accommodate two people plunging at once.

Odin comes in 3 different sizes, with a Lite version and a Pro version available for each size.

The Lite models are designed for a couple of plunges daily, at different times.

Pro models are designed for scenarios where there are multiple people plunging multiple times a day.

The difference between the Lite models and Pro models is the compressor and the filtration system.

The Lite models use a 1/4 horsepower compressor, and the Pro models use a 1/2 horsepower compressor.

The Pro versions can return to starting temperature after use much faster (10-15 minutes), compared to the Lite versions which take longer (45 - 60 minutes).

Odin Pro’s also have a larger filter to accomodate multiple plunges daily. We also offer a UV upgrade that allows extra sanitisation (in addition to the ozone) to ensure that your clients will feel safe and clean for every plunge!

We recommend the Pro versions for commercial use - such as gyms or wellness centres - as they will need a stronger compressor and filter to be used continuously and multiple times an hour.

For Australian orders the Odin comes almost fully assembled on a custom-sized pallet.

Free-standing, no plumbing required.

The only installation required is for a qualified electrician to connect the RCD safety plug to the bath's power cord - a process that takes just minutes! Then you simply plug in, fill up and turn on!

We recommend staining the cedar every 6-12 months to keep it fresh - just depending on your personal preferences.

For a home-use bath we recommend cleaning/replacing the reusable filter every 3-4 weeks, and the water can be replaced every 2-3 months, depending on degree of use and your personal preferences.

For commercial-use we recommend cleaning/replacing the reusable filter every 1-2 weeks for your client peace-of-mind, and replacing the water every 1-2 months, depending on degree of use.

The maintenance and cleaning frequency will depend on use. If you are rinsing off between sauna sessions or work outs you will find that your Odin will stay cleaner for longer!

**Please note: the Odin is designed to be kept under cover and out of direct sunlight and harsh weather. Please see FAQs for more info.

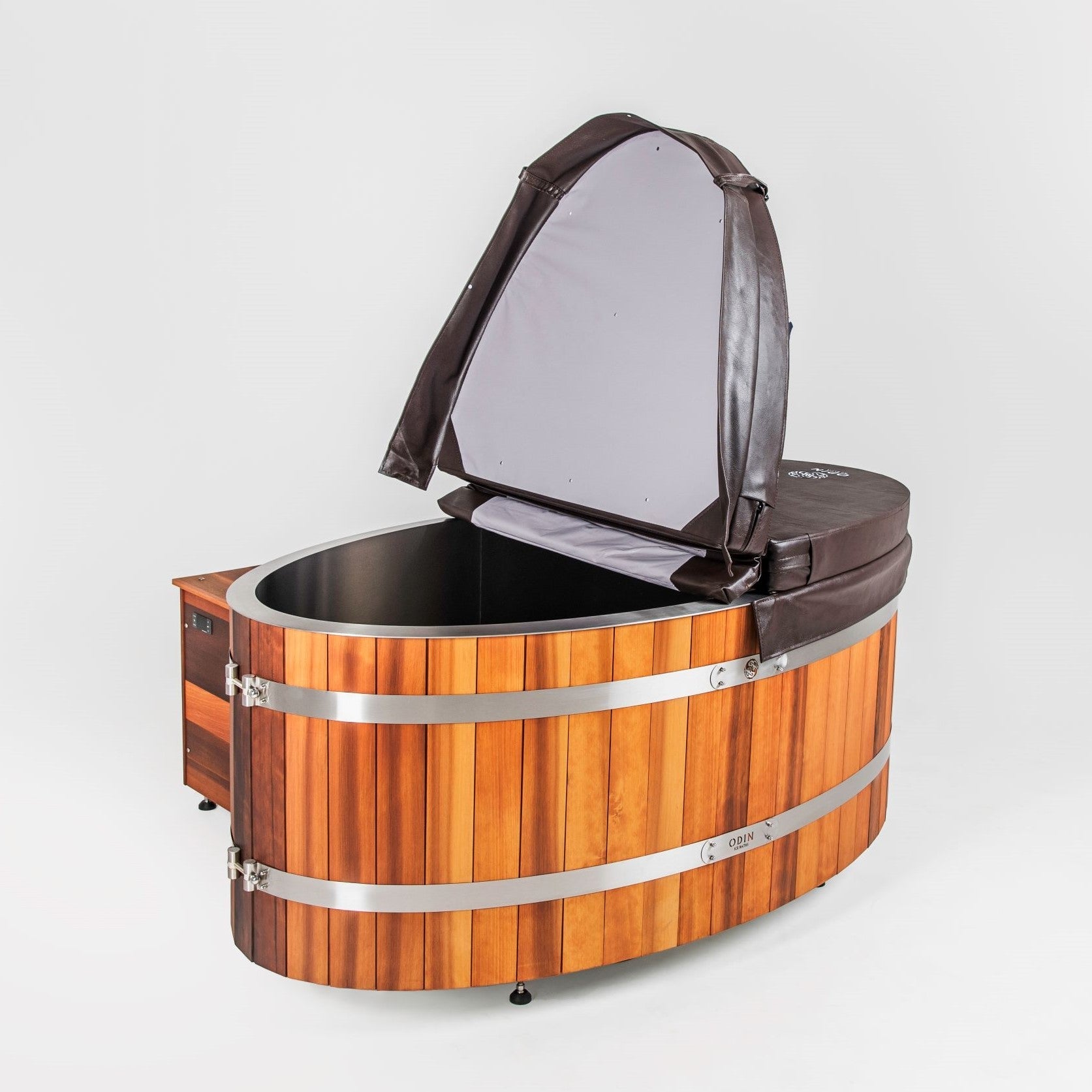

The Odin comes with an insulated lockable spa lid that is custom fit to your tub! It will keep the cold air in - allowing for a more economical plunge that uses less energy to stay cool.

All models of the Odin operate on 220-240v power and use a standard 10amp household power socket.

Every model comes equipped with an RCD safety plug and is designed to be left on 24/7.

The Lite models use a similar amount of power as a large chest freezer; around 6-8kWh/day.
The Pro models use a similar amount as an extra-large chest freeze; around 10-12kWh/day.

The noise output is similar to that of a large chest freezer.

Unlike other “ice baths” that use external chillers, the Odin uses a cooling compressor that is connected to copper coils wrapped around the inner stainless steel tub walls.

This allows the Odin to reach a true 0ºC (32ºF) becuase it is the stainless steel wall cooling the bath, not an external chiller, so there is no heat loss when water is pulled out of the bath for cleaning and sanitisation.

If left on at a low enough temperature the Odin will make its own ice! The ice will form in smooth waves on the walls, along the lines of the copper coil.

We use Tecumseh R404a cooling compressors. The Lite models use a 1/4 horsepower compressor and the Pro models use a 1/2 horsepower compressor.

The cooling system is purchased from a refrigerant company on the Gold Coast, who import them from Mexico.

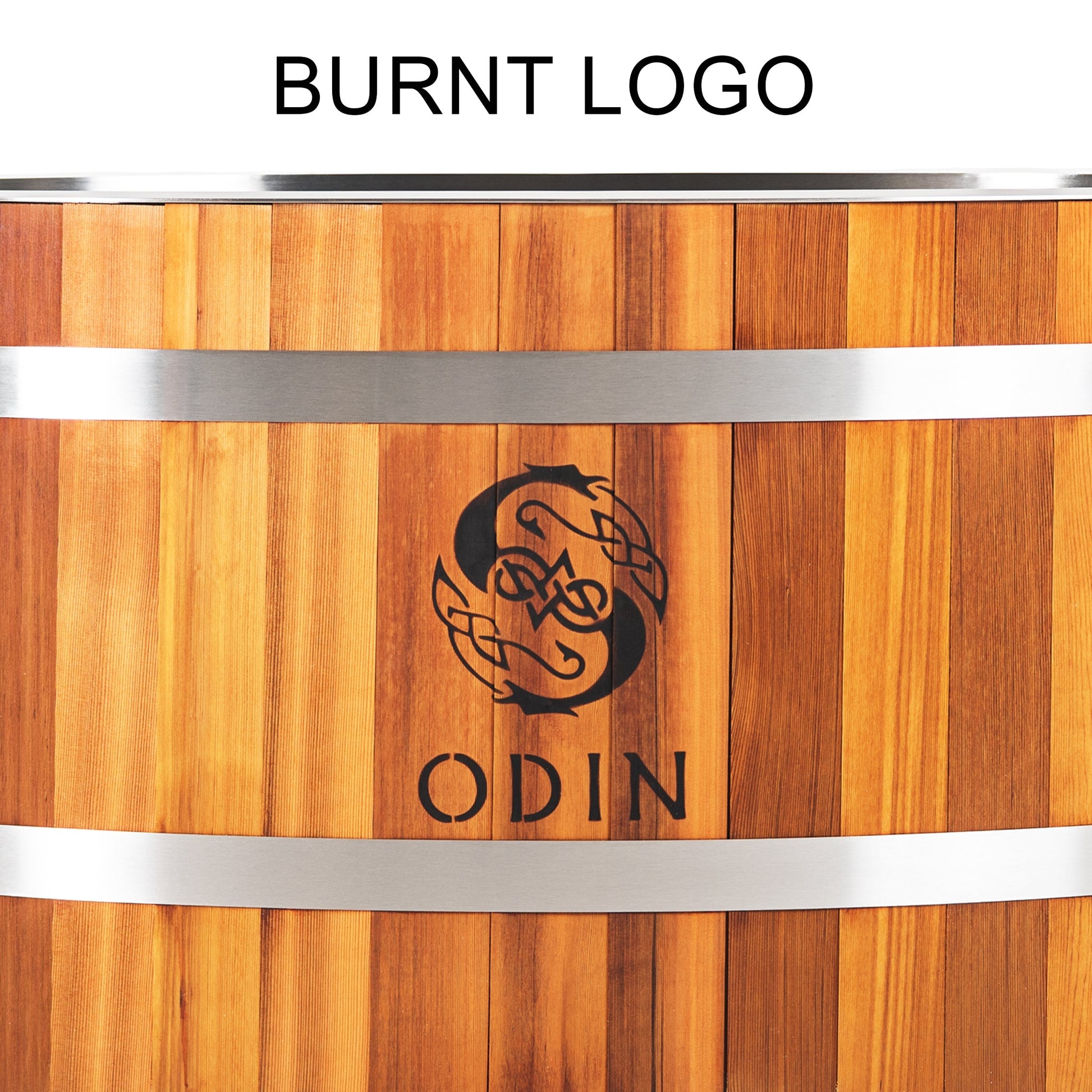

The Odin uses marine grade 316 stainless steel and 100% clear western red cedar.

We start with a coil of stainless steel and a pile of raw cedar and hand-make the Odin from our factory on the Gold Coast into the product you know and love!

Odin Ice Bath:
- 5 year warranty on the cosmetic components, such as the stainless steel tub and the cedar.
- 3 year warranty on the working components, which includes the cooling compressor, plumbing and electrical.

Odin Plunge:
- 5 year warranty on the cosmetic components, such as the stainless steel tub and the cedar.
- 2 year warranty on the working components, which includes the cooling compressor, plumbing and electrical.

MEASUREMENTS ARE IN MILLIMETRES (mm)

Interior = the inner stainless steel section of the Odin- the part that you sit in.

Exterior = the full outside dimensions of the Odin, including the housing step.

IMPORTANT: An additional 300mm (minimum) of clearance is needed in front of the housing step to allow sufficient room to access the filter within for maintenance. Please add an additional 300mm to the EXTERNAL WIDTH (W) measurements below when considering the total area required to house the Odin.

Original Lite Interior - 1200 L × 800 W × 600 H

Original Lite External - 1300 L × 1280 W × 740 H

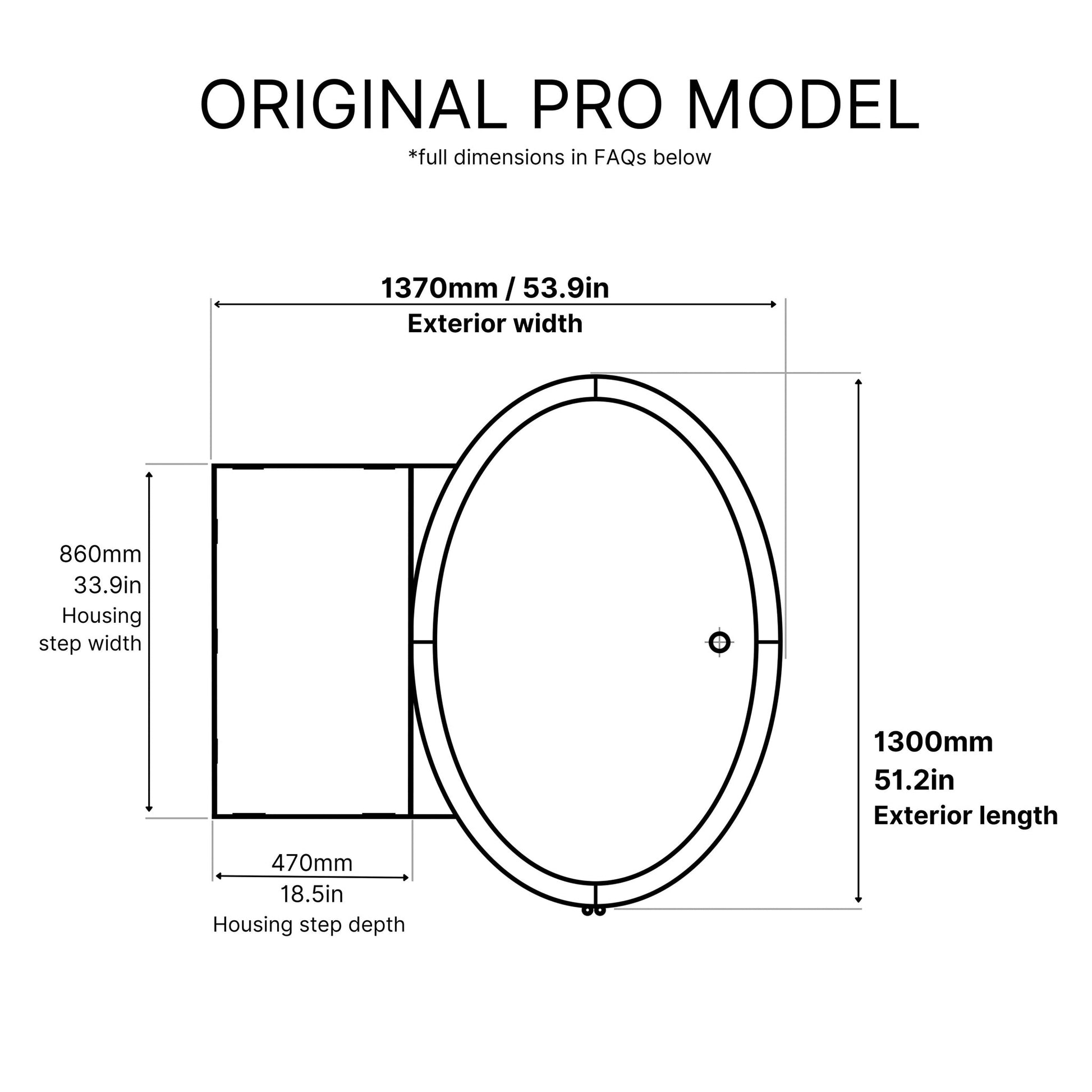

Original Pro Interior - 1200 L × 800 W × 600 H

Original Pro External - 1300 L × 1370 W × 740 H

XL Lite Interior - 1500 L × 800 W × 600 H

XL Lite Exterior - 1600 L x 1310 W × 740 H

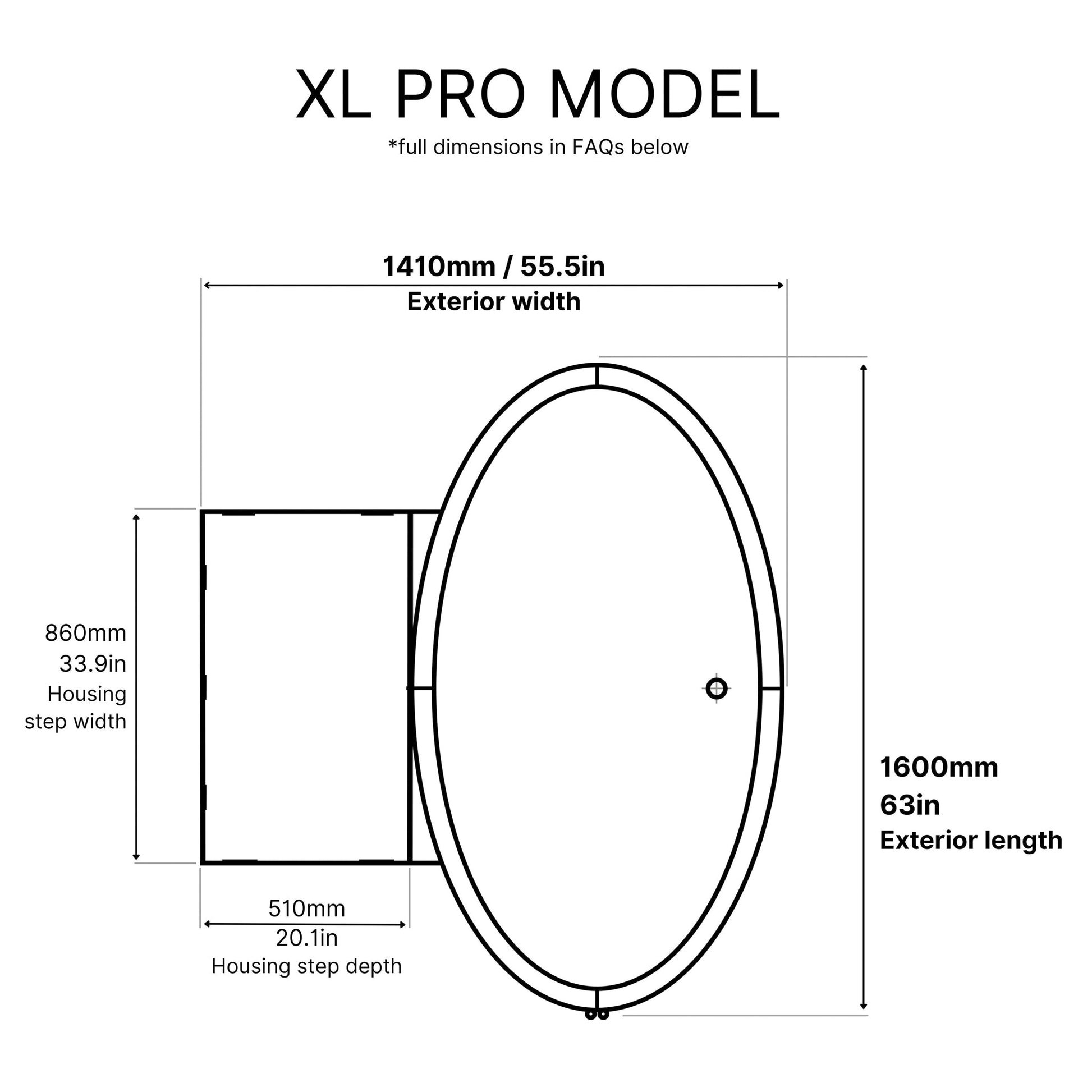

XL Pro Interior - 1500 L × 800 W × 600 H

XL Pro Exterior - 1600 L × 1410 W × 740 H

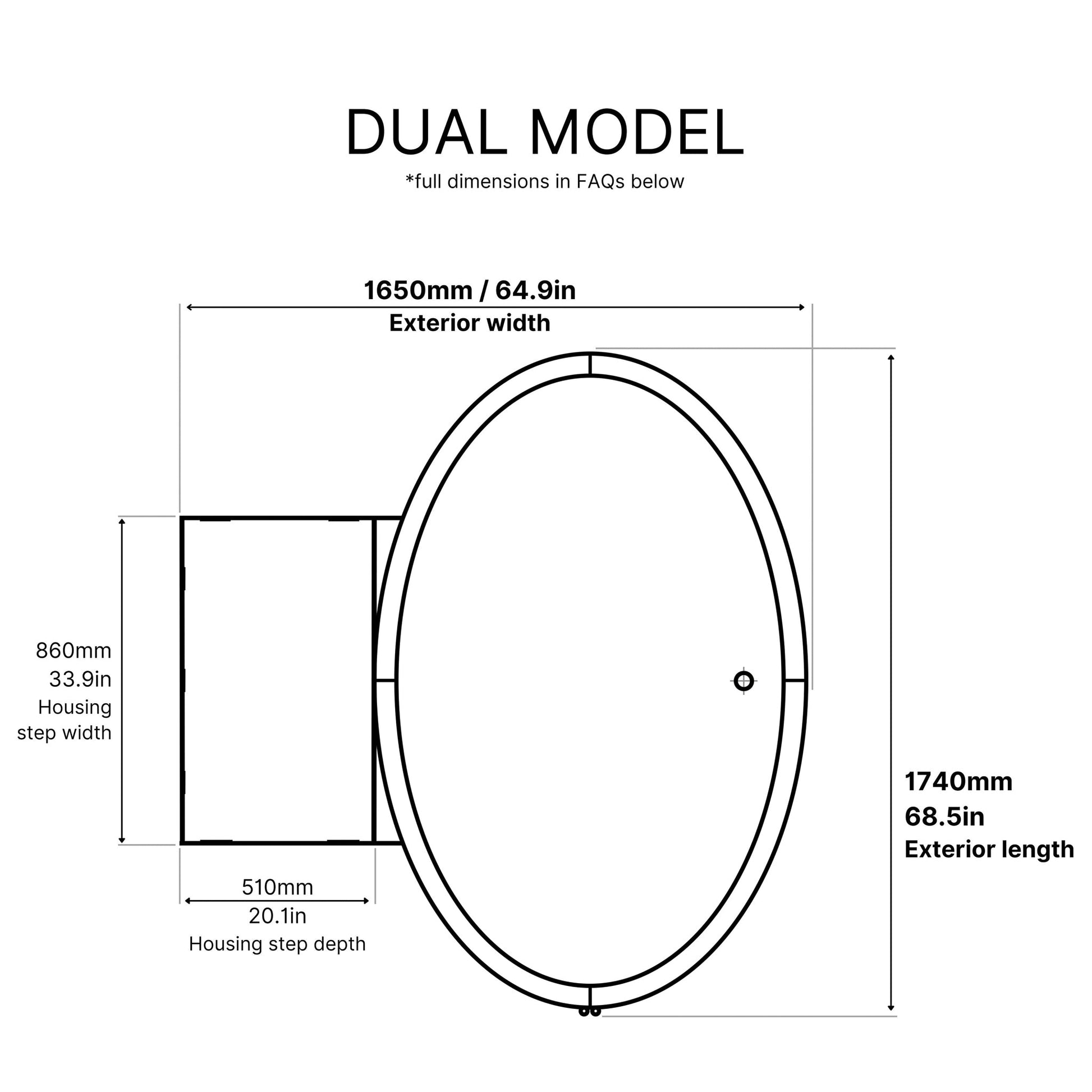

Dual Pro Interior - 1640 L × 1040 W × 600 H

Dual Pro Exterior - 1740 L × 1650 W × 740 H

As Odin's are made using the metric system there may be small differences in the dimensions when being converted to inches; these conversions have been rounded to the nearest decimal.


 MEASUREMENTS ARE IN INCHES (in)

Interior = the inner stainless steel section of the Odin - the part that you sit in.

Exterior = the full outside dimensions of the Odin, including the housing step.

IMPORTANT: An additional 12in (minimum) of clearance is needed in front of the housing step to allow sufficient room to access the filter within for maintenance. Please add an additional 12in to the EXTERNAL WIDTH (W) measurements below when considering the total area required to house the Odin.

Original Lite Interior - 47.2 L × 31.5 W × 23.6 H approx.

Original Lite External - 51.2 L × 50.4 W × 29.1 H approx.

Original Pro Interior - 47.2 L × 31.5 W × 23.6 H approx.

Original Pro External - 51.2 L × 53.9 W × 29.1 H approx.

XL Lite Interior - 59 L × 31.5 W × 23.6 H approx.

XL Lite Exterior - 63.0 L x 51.6 W × 29.1 H approx.

XL Pro Interior - 59 L × 31.5 W × 23.6 H approx.

XL Pro Exterior - 63.0 L × 55.5 W × 29.1 H approx.

Dual Pro Interior - 64.6 L × 40.9 W × 23.6 H approx.

Dual Pro Exterior - 68.5 L × 64.9 W × 29.1 H approx.
